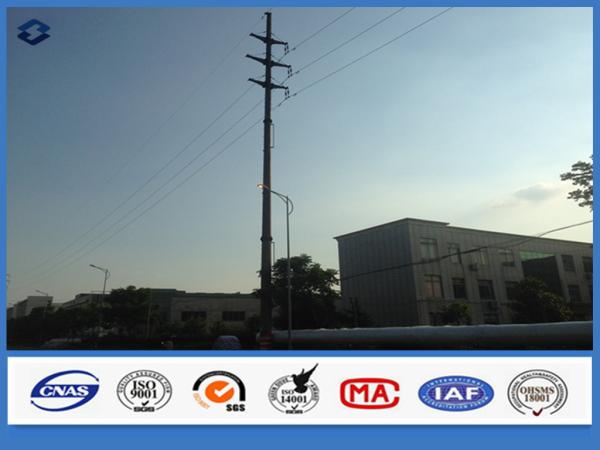

Hot Dip Galvanized Steel Polygonal Electrical Power Suspension Pole
Description:
Electric steel pole is a new set-up power lines of power equipment in recent years, which are replacing the traditional concrete electric poles. Electric steel pole can be manufactured of polygonal and round steel pipe, and processed by hot dip galvanized. Mainly used for power transmission.
1. Steel poles need less occupied area. Nowadays, land price is getting more and more expensive with more and more population. While steel poles only take 1/3 area of the self-supporting towers. This makes steel poles the first option of power transmission. They take less occupation expenditure.
2. Pole parts are not easy to be stolen. For the traditional concrete poles, pole parts like anchor bolts are easy to be stolen, which is one of the biggest problems for the safe operation of the power transmission. But steel poles are whole planted or flange connected, which prevents the parts being stolen.
3. Steel poles are easy to produce, assemble and construct. This advantage increases efficiency and shorten the time limit for the project.
4. Compared with traditional concrete poles, steel poles are Small and exquisite. This meets the requirement of urban landscape in most cities.
We buy raw materials from famous mill factory here in China. We'll check the elements of the raw material like silicon, carbon, sulfur etc. in our lab test room. If they are unqualified, we'll return them. In this way, we can control the quality from the first beginning.
Our factory offers ODM and OBM service. Of course, it'll be better if you have the drawing and detailed specifications of the steel poles. So we can immediately calculate the weight and give you the exact quotation.
After the fabrication process as cutting plate, bending, forming, automatic welding, drilling holes, we get poles checked before galvanized, hot dip galvanized and powder coating and finally we get poles checked according to client's requirements.
Specifications
| Type | Straight Pole, Tensile Pole, Turn Pole |
| Suit for | Electricity Network |
| Shape | polygonal |
| Tolerance of dimension | +- 2% |
| Power | 10 KV ~550 KV |
| Safety Factor | Safety factor for conducting wine : 8 |
| Design Load in Kg | 300~ 1000 Kg appliced to 50cm from the top pole |
| Marks | Name plate through rivert or glue , engrave , emboss as per customer requirement |
| Surface treatment | Hot dip galvanized with ASTM A 123, color as client required. |
| Joint of Poles | Insert mode,innerflange mode, face to face joint mode |
| Design of pole | Against earthquake of 8 grade |
| Wind Speed | 160 Km/Hour . 30 m /s |
| Length of per section | Within 14m once forming without slip joint |
| Welding | Welding Standard : AWS ( American Welding Society ) D 1.1 |
| Thickness | 2.5 mm to 30 mm |
Factory Profile
With over 10 Years of Experience/ Capable to Handle Volume Orders
Exporting to Southeast Asia, Africa, Europe, Austrlia, the Middle East, South America, etc.
Jiangsu Baojuhe Science and Technology Co. Ltd (JSBS) specializes in manufacturing various steel structures. We manufacture a variety of products like Transmission Poles and Substation Structures for the power transmission industry; high masts and street lighting poles for illumination, which are widely used in expressways, airports, ports and docks, depots, parking lots and stadiums; tower poles for funicular railways; Telcommunication poles for the telecommunication industry; Traffic Poles & Camera Poles & Sign Structures for transportation Industry and Advertising Industry.
